Vertical lift parking equipment-comb type

It is suitable for parking lots above ground in residential areas, shopping malls, hospitals, office buildings, government agencies, etc., equipped with rainproof facilities.

Key words:

Vertical lift parking equipment

smart garage

stereo garage

Classification:

Vertical lift parking equipment

Tel:

86-400-114-0889

Product inquiry

Applicable occasions

It is suitable for parking lots above ground in residential areas, shopping malls, hospitals, office buildings, government agencies, etc., equipped with rainproof facilities.

Equipment parameters

Equipment Name	Vertical lifting mechanical parking equipment (comb type)
Device Type	Independent type
Type of access	Bottom Access
Number of equipment layers	15 floors
Number of parking	A total of 60 parking spaces
Capacity dimensions		SUV(16 cars)	Sedan (44 spaces)
	Length	5300mm	5300mm
	Width	1900mm	1900mm
	Height	1950mm	1550mm
	Weight	2350kg	2350kg
	Wheelbase	2070 mm-3270 mm
	Ground clearance	105 mm
Driving part	Rated speed (m/min)	Lifting	0-60 m / min
		Transverse	0-8m / min
		Rotate	0-2 r/min
Door Type	Fast shutter door
Operation mode	Touch screen
Power	AC380, three-phase five-wire system, 50Hz

Equipment features

The comb-type small tower library combines the technology of lifting and traversing and tower library, which greatly improves the space utilization rate.

The lifting method is chain or wire rope, and the maximum lifting speed can reach 60 m/min, which solves the problem that ordinary lifting and traversing cannot be quickly lifted.

Vehicles enter and exit from the ground floor. One entrance and exit can be set up for each parking space on the ground floor. Each entrance and exit corresponds to a lift. The lift sends the vehicle to the parking floor or the ground floor through comb exchange.

Each group of control area to leave a lifting channel, the general design of two entrances and exits to share a lifting channel.

The ground according to the load is different, need to do different concrete foundation.

When accessing the vehicle, enter the license plate number or swipe the card on the touch screen, and the device automatically sends the vehicle to the ground.

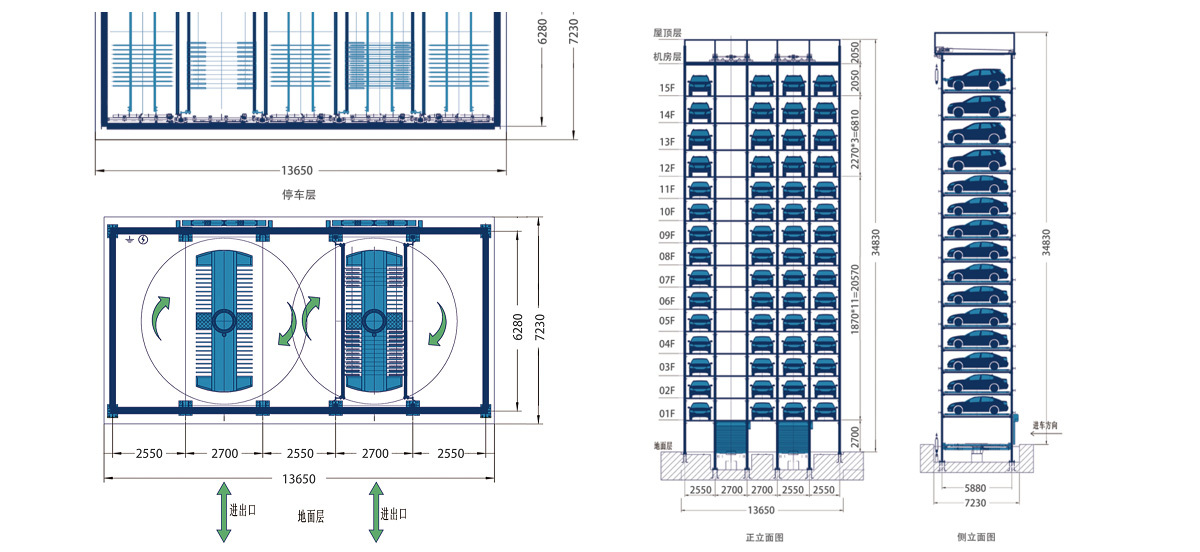

Equipment Schematic Diagram
